CDM150 загвар
CNP брэнд
-
Оролтын хүчдэл: 50Hz, 3×380V
-
Чадлын хүрээ: 1.5kW – 15kW
-
Гаралтын давтамж: 30Hz – 50Hz
-
Даралт тохируулга: 0.1 bar

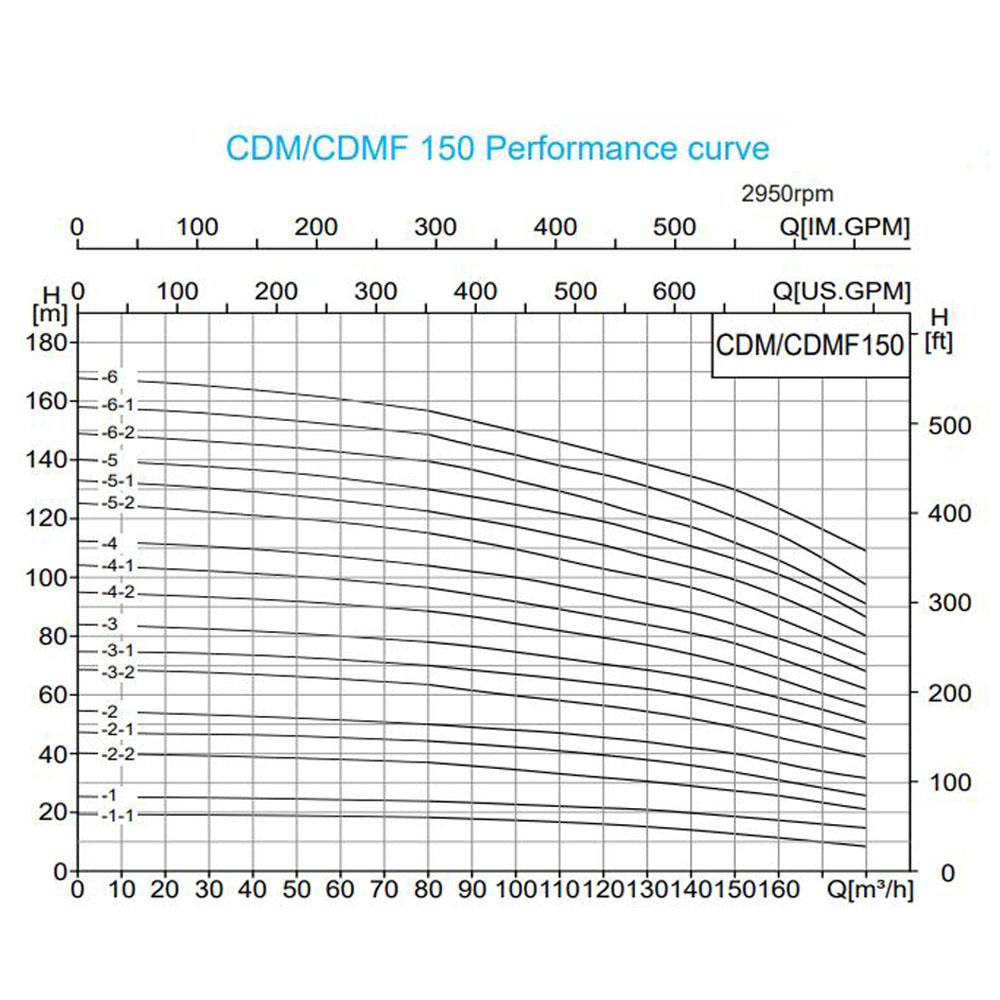

| Загвар | KW | Q(m3/h) | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM 150-2 | 30 | H (m) | 50 | 49 | 48 | 47 | 45.5 | 44 | 42 | 40 | 37 | 34 | 32 |
| CDM 150-3-2 | 30 | 53.5 | 61 | 59 | 57.5 | 56 | 54.5 | 53 | 49 | 45.5 | 42 | 39 | |
| CDM 150-3-1 | 37 | 70 | 68 | 67 | 65 | 63 | 62 | 60 | 56 | 53 | 49 | 45 | |
| CDM 150-4-2 | 45 | 89 | 87 | 84 | 81.5 | 79 | 77 | 74.5 | 70.5 | 65.5 | 60 | 56 | |
| CDM 150-4 | 55 | 104 | 102 | 100 | 97 | 95 | 91 | 88 | 84 | 79.5 | 74 | 68 | |
| CDM 150-5-1 | 75 | 122.5 | 119.5 | 117 | 113.5 | 111 | 107.5 | 104.5 | 99 | 93.5 | 87 | 80 | |
| CDM 150-5 | 75 | 130 | 127.5 | 125 | 121 | 119 | 115 | 111.5 | 106.5 | 101 | 84.5 | 86.5 | |
| CDM 150-6-1 | 75 | 148.5 | 145 | 141 | 137.5 | 135 | 131 | 127 | 120.5 | 114.5 | 106.5 | 97.5 | |
| CDM 150-6 | 75 | 157 | 153 | 149 | 145 | 142 | 139.5 | 137 | 130 | 123.5 | 116 | 109 |

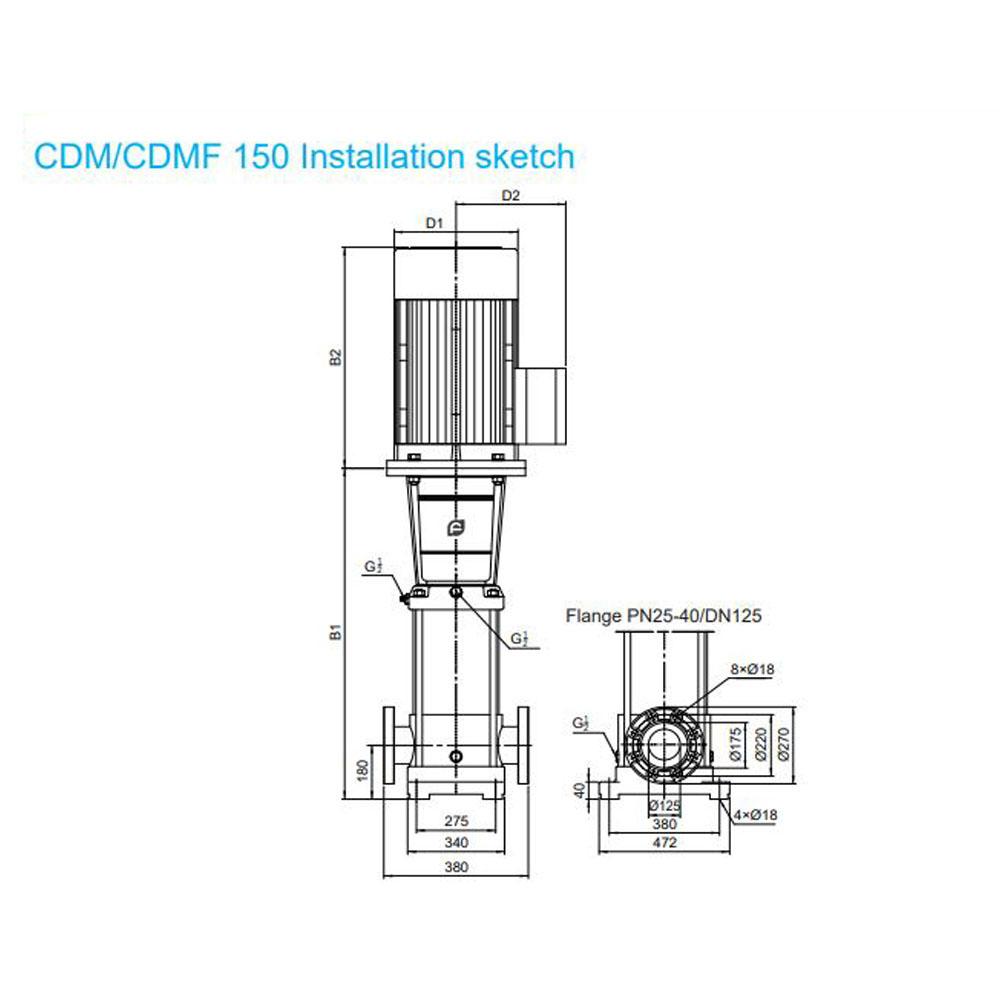

| Загвар | D1 | D2 | CDM | CDMF | H | H1 | H2 |
|---|---|---|---|---|---|---|---|
| CDM 150-2 | 400 | 310 | 364 | 351 | 1650 | 820 | 650 |
| CDM 150-3-2 | 400 | 310 | 374 | 361 | 1810 | 980 | 650 |
| CDM 150-3-1 | 400 | 310 | 395 | 382 | 1810 | 980 | 650 |
| CDM 150-4-2 | 460 | 340 | 502 | 489 | 2005 | 1140 | 685 |
| CDM 150-4 | 540 | 370 | 625 | 612 | 2110 | 1170 | 760 |
| CDM 150-5-1 | 580 | 410 | 752 | 739 | 2355 | 1330 | 845 |
| CDM 150-5 | 580 | 410 | 752 | 739 | 2355 | 1330 | 845 |
| CDM 150-6-1 | 580 | 410 | 762 | 749 | 2515 | 1490 | 845 |
| CDM 150-6 | 580 | 410 | 762 | 749 | 2515 | 1490 | 845 |
