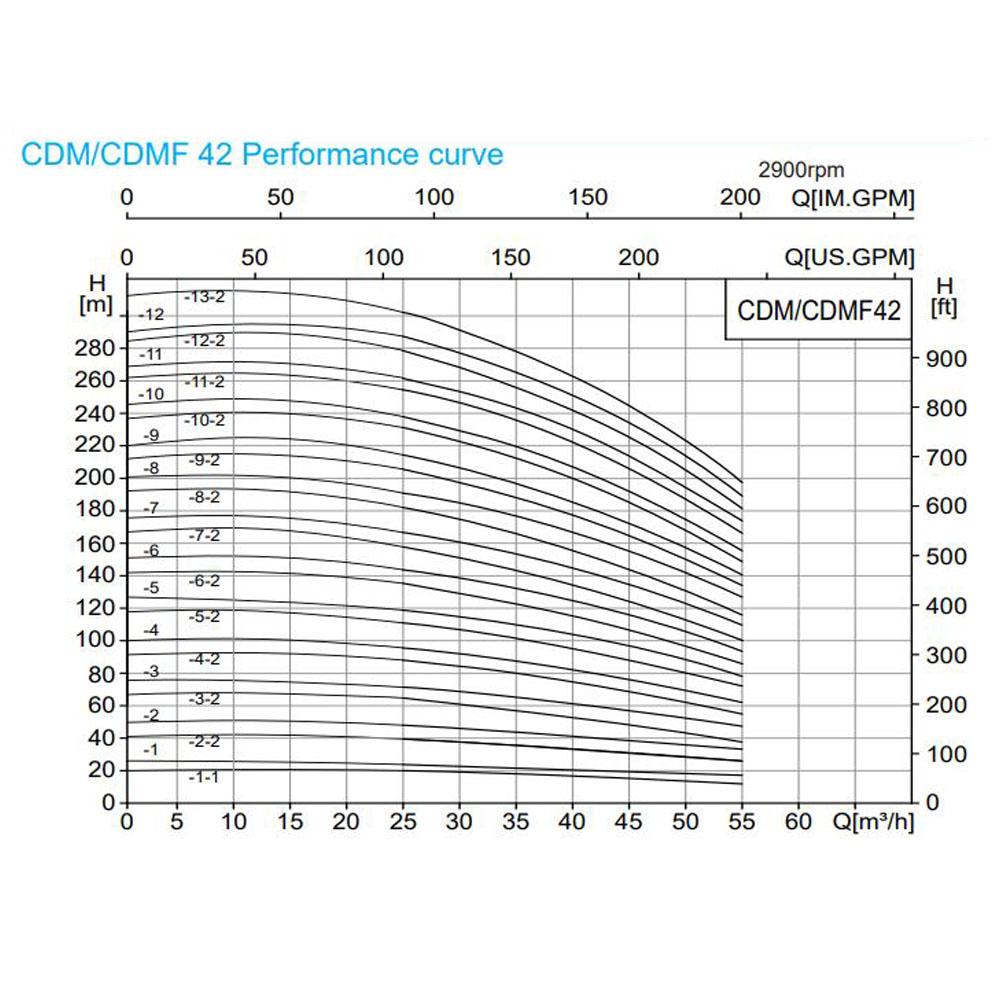

Загвар	KW	Q(m3/h)	0	25	30	35	40	42	45	50	55
CDM 42-2-2	5.5	H (m)	42	40	38	36	33	32	30	27	23
CDM 42-2	7.5		50	48	46	44	42	41	39	35	31
CDM 42-3	11		75	71	69	66	63	61	58	53	47
CDM 42-4	15		100	95	92	88	84	81	78	71	62
CDM 42-5-2	18.5		118	111	107	102	96	93	88	80	69
CDM 42-5	18.5		125	119	115	110	105	101	97	88	78
CDM 42-6-2	22		142	135	130	124	117	113	108	97	85
CDM 42-6	22		150	143	138	132	125	122	116	106	93
CDM 42-7-2	30		166	158	152	146	138	134	127	115	100
CDM 42-7	30		175	166	161	154	146	142	135	124	109
CDM 42-8-2	30		192	182	175	168	159	154	146	133	116
CDM 42-8	30		202	190	184	176	167	162	154	141	124
CDM 42-9	37		212	205	198	190	180	174	166	150	132
CDM 42-10	37		245	238	230	220	209	203	193	177	155
CDM 42-11	40		269	263	255	244	232	225	214	196	173
CDM 42-12	45		290	289	280	268	255	247	236	216	190

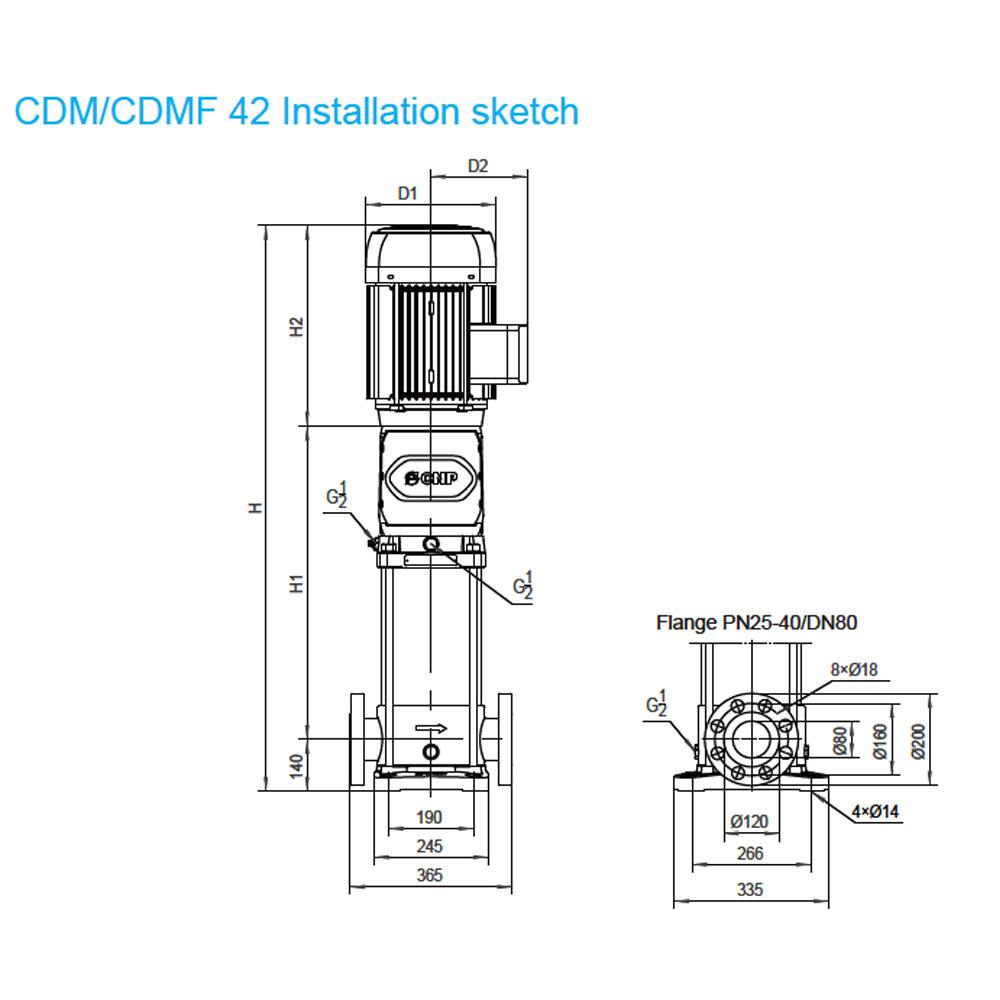

Загвар	D1	D2	CDMF	CDM	H	H1	H2
CDM 42-2-2	260	208	113	103	1051	521	390
CDM 42-2	260	208	121	111	1051	521	390
CDM 42-3	330	255	192	182	1271	631	500
CDM 42-4	330	255	211	201	1351	711	500
CDM 42-5-2	330	255	223	212	1481	791	550
CDM 42-5	330	255	223	212	1481	791	550
CDM 42-6-2	360	285	279	269	1586	871	575
CDM 42-6	360	285	279	269	1586	871	575
CDM 42-7-2	400	310	343	333	1741	951	650
CDM 42-7	400	310	343	333	1741	951	650
CDM 42-8-2	400	310	347	337	1821	1031	650
CDM 42-8	400	310	347	337	1821	1031	650
CDM 42-9	400	310	370	360	1901	1111	650
CDM 42-10	400	310	374	364	1981	1191	650
CDM 42-11	450	345	477	467	2096	1271	685
CDM 42-12	450	345	481	471	2176	1351	685
