CDM120 загвар
CNP брэнд
-
Оролтын хүчдэл: 50Hz, 3×380V
-
Чадлын хүрээ: 1.5kW – 15kW
-
Гаралтын давтамж: 30Hz – 50Hz
-
Даралт тохируулга: 0.1 bar

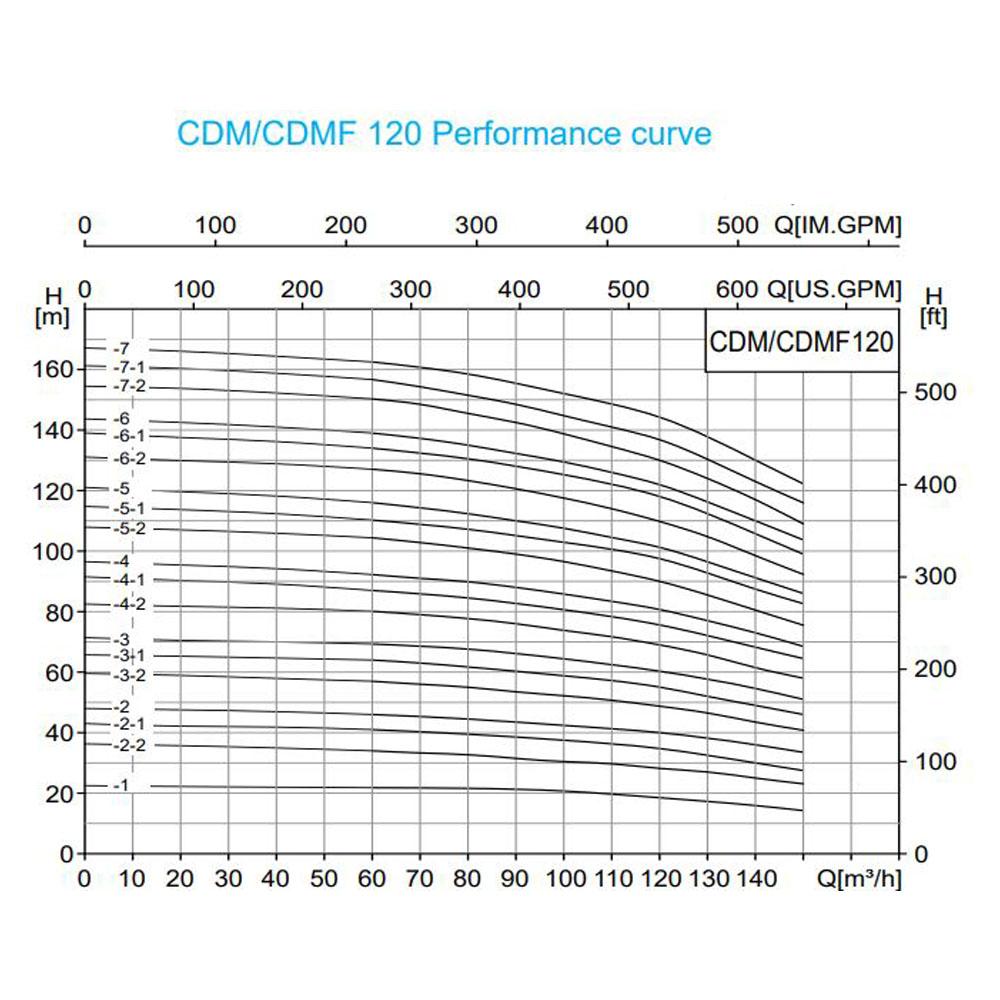

| Загвар | KW | Q(m3/h) | 0 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM 120-2 | 22 | H (m) | 48 | 46 | 45 | 44.5 | 43.5 | 42.4 | 41 | 40 | 38 | 36 | 33.5 |
| CDM 120-3-1 | 30 | 65.5 | 64 | 63 | 62 | 60 | 58.5 | 57.5 | 55.5 | 52 | 49 | 46 | |
| CDM 120-3 | 30 | 71 | 69.5 | 68.5 | 67.5 | 66 | 64.4 | 62.5 | 61 | 57.5 | 54.5 | 51 | |
| CDM 120-4 | 45 | 96 | 92.5 | 91 | 90 | 88 | 85.5 | 83 | 81 | 77 | 73 | 68.5 | |
| CDM 120-5 | 55 | 121 | 115 | 114 | 113 | 110 | 107.5 | 104.5 | 101.5 | 96 | 91 | 86 | |
| CDM 120-6 | 75 | 144 | 139 | 137 | 135 | 132 | 128.8 | 126 | 123 | 116 | 110 | 104 | |
| CDM 120-7 | 75 | 166 | 162 | 160 | 158.5 | 155 | 151 | 148 | 145 | 137 | 129 | 123 |

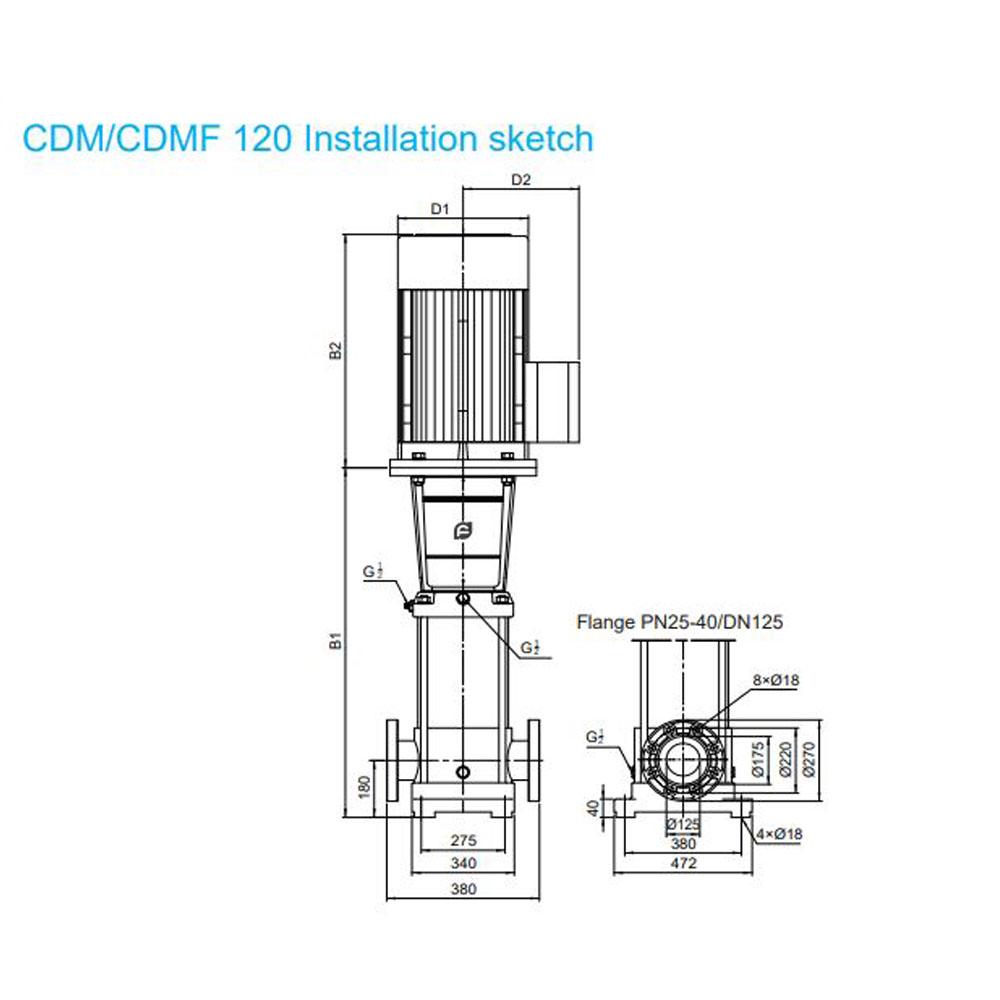

| Загвар | D1 | D2 | CDM | CDMF | H | H1 | H2 |
|---|---|---|---|---|---|---|---|
| CDM 120-2 | 360 | 285 | 297 | 297 | 1575 | 820 | 575 |
| CDM 120-3-1 | 400 | 310 | 375 | 362 | 1810 | 980 | 650 |
| CDM 120-3 | 400 | 310 | 375 | 362 | 1810 | 980 | 650 |
| CDM 120-4 | 460 | 340 | 501 | 488 | 2005 | 1140 | 685 |
| CDM 120-5 | 540 | 370 | 632 | 619 | 2270 | 1330 | 760 |
| CDM 120-6 | 580 | 410 | 757 | 744 | 2515 | 1490 | 845 |
| CDM 120-7 | 580 | 410 | 766 | 753 | 2675 | 1650 | 845 |
