CDM20 загвар
CNP брэнд
-
Оролтын хүчдэл: 50Hz, 3×380V
-
Чадлын хүрээ: 1.5kW – 15kW
-
Гаралтын давтамж: 30Hz – 50Hz
-
Даралт тохируулга: 0.1 bar

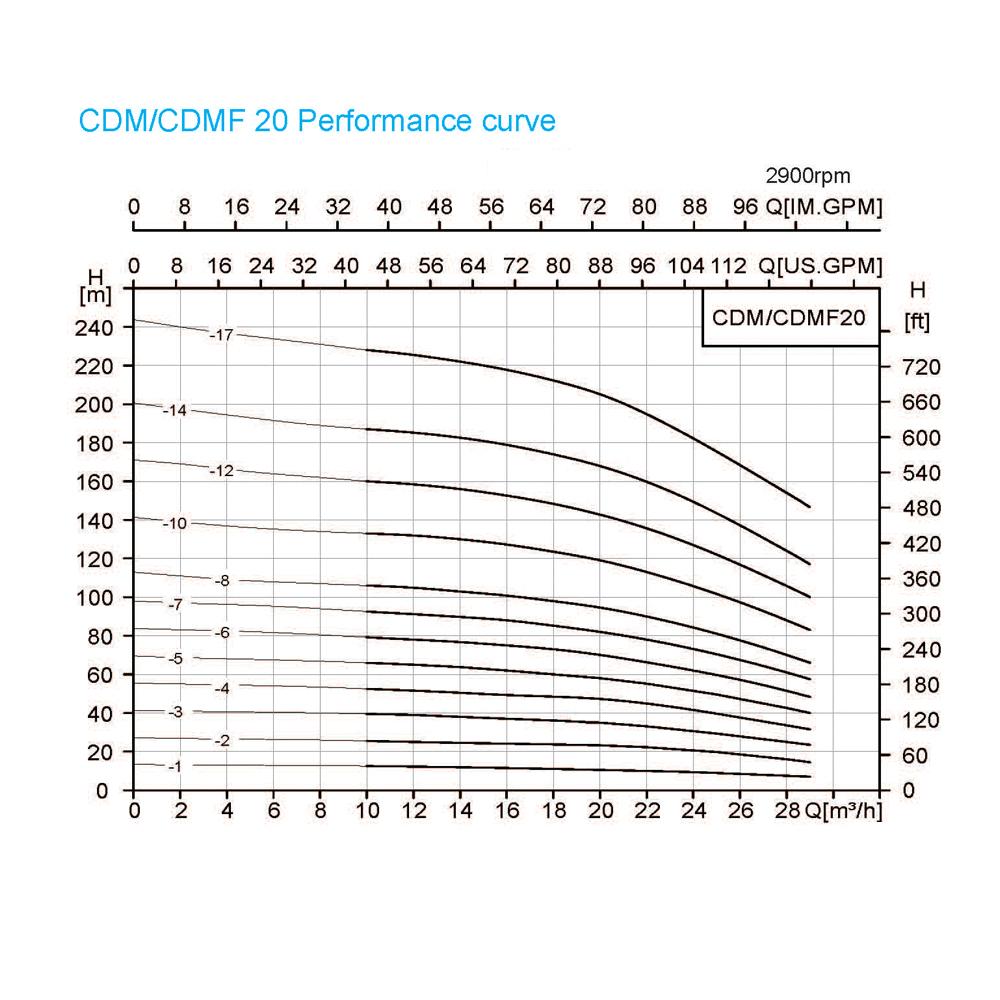

| Загвар | KW | Q(m3/h) | 0 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 29 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM 20-3 | 4 | 41.5 | 39.5 | 39 | 38 | 37 | 36 | 34.5 | 33 | 31 | 28 | 23.5 | 25 | |
| CDM 20-4 | 5.5 | H(m) | 55.5 | 52.5 | 51 | 50 | 49 | 48.5 | 47 | 45 | 41.5 | 37 | 31.5 | 33 |
| CDM 20-5 | 5.5 | 69,5 | 66 | 65 | 64 | 62 | 60 | 58 | 55 | 51 | 47 | 40 | 42 | |
| CDM 20-6 | 7.5 | 84 | 79 | 78 | 77 | 75 | 73 | 70 | 66 | 62 | 58 | 48 | 52 | |
| CDM 20-7 | 7.5 | 98 | 92,5 | 91 | 90 | 88 | 85 | 82 | 78 | 73 | 68 | 57,5 | 61 | |
| CDM 20-8 | 11 | 113 | 106 | 105 | 103 | 101 | 98 | 95 | 90 | 84 | 77 | 66 | 70 | |
| CDM 20-10 | 11 | 141 | 133 | 132 | 130 | 127 | 123 | 119 | 113 | 106 | 97 | 83 | 88 | |
| CDM 20-12 | 15 | 171 | 160 | 158 | 156 | 153 | 149 | 143 | 137 | 127 | 117 | 100 | 106 | |
| CDM 20-14 | 15 | 200 | 187 | 185 | 183 | 179 | 174 | 168 | 160 | 149 | 137 | 117 | 124 | |
| CDM 20-17 | 18.5 | 244 | 228 | 225 | 222 | 218 | 212 | 205 | 195 | 182 | 168 | 147 | 154 | |

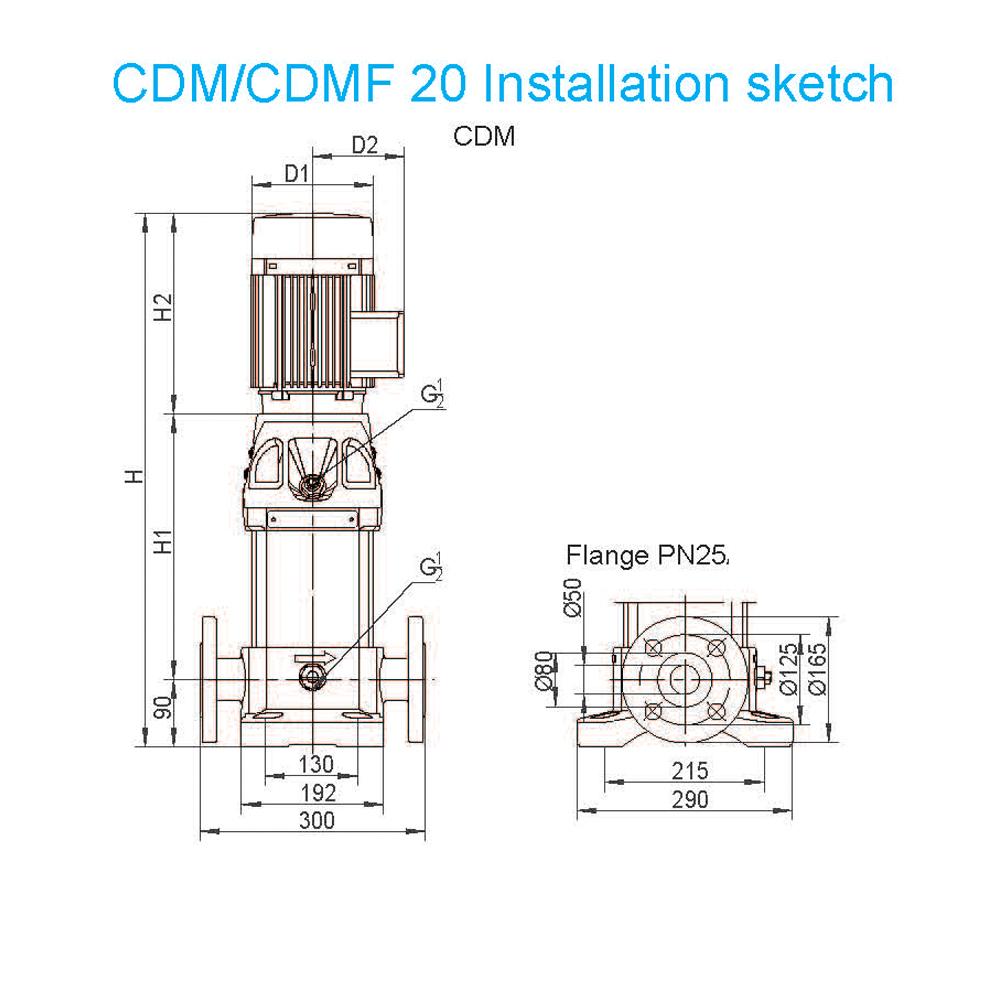

| Загвар | D1 | D2 | CDM | CDMF | H(Flange/Oth) | H1 | H2 |
|---|---|---|---|---|---|---|---|
| CDM 20-3 | 230 | 188 | 66 | 59 | 807 | 362 | 355 |
| CDM 20-4 | 260 | 208 | 88 | 81 | 965 | 485 | 390 |
| CDM 20-5 | 260 | 208 | 90 | 83 | 1010 | 530 | 390 |
| CDM 20-6 | 260 | 208 | 99 | 92 | 1055 | 575 | 390 |
| CDM 20-7 | 260 | 208 | 100 | 93 | 1100 | 620 | 390 |
| CDM 20-8 | 330 | 255 | 167 | 160 | 1285 | 695 | 500 |
| CDM 20-10 | 330 | 255 | 170 | 163 | 1375 | 785 | 500 |
| CDM 20-12 | 330 | 255 | 188 | 181 | 1465 | 875 | 500 |
| CDM 20-14 | 330 | 255 | 191 | 184 | 1555 | 965 | 500 |
| CDM 20-17 | 330 | 255 | 212 | 205 | 1740 | 1100 | 550 |
