CDM85 загвар
CNP брэнд
-
Оролтын хүчдэл: 50Hz, 3×380V
-
Чадлын хүрээ: 1.5kW – 15kW
-
Гаралтын давтамж: 30Hz – 50Hz
-
Даралт тохируулга: 0.1 bar

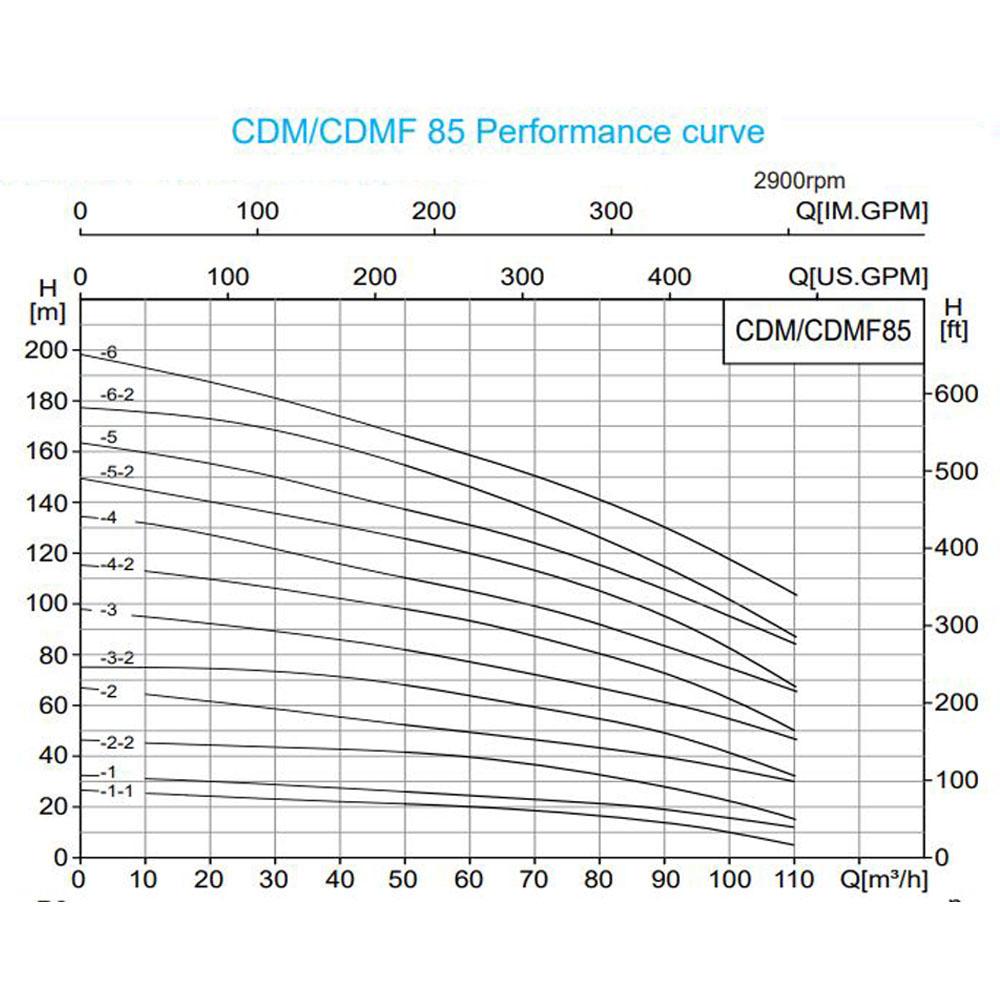

| Загвар | KW | Q(m3/h) | 0 | 50 | 60 | 70 | 80 | 85 | 90 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM 85-1-1 | 5.5 | H (m) | 26 | 22 | 19 | 17 | 16 | 14 | 13 | 10 | 6 |
| CDM 85-1 | 7.5 | 33 | 25 | 24 | 22 | 21 | 20 | 19 | 16 | 12 | |
| CDM 85-2-2 | 11 | 47 | 41 | 39 | 36 | 32 | 30 | 28 | 22 | 15 | |
| CDM 85-2 | 15 | 67 | 53 | 50 | 47 | 44 | 41 | 40 | 36 | 30 | |
| CDM 85-3-2 | 18.5 | 75 | 68 | 65 | 60 | 55 | 52 | 49 | 41 | 32 | |
| CDM 85-3 | 22 | 98 | 81 | 77 | 72 | 67 | 64 | 62 | 55 | 48 | |
| CDM 85-4-2 | 30 | 115 | 98 | 93 | 87 | 80 | 75 | 72 | 62 | 50 | |
| CDM 85-4 | 30 | 134 | 110 | 105 | 100 | 92 | 86 | 84 | 76 | 66 | |
| CDM 85-5-2 | 37 | 150 | 126 | 120 | 113 | 104 | 98 | 93 | 81 | 68 | |
| CDM 85-5 | 37 | 164 | 139 | 131 | 124 | 115 | 110 | 106 | 94 | 83 | |
| CDM 85-6-2 | 45 | 177 | 155 | 148 | 139 | 129 | 122 | 117 | 102 | 86 | |
| CDM 85-6 | 45 | 197 | 168 | 160 | 150 | 141 | 134 | 130 | 117 | 103 |

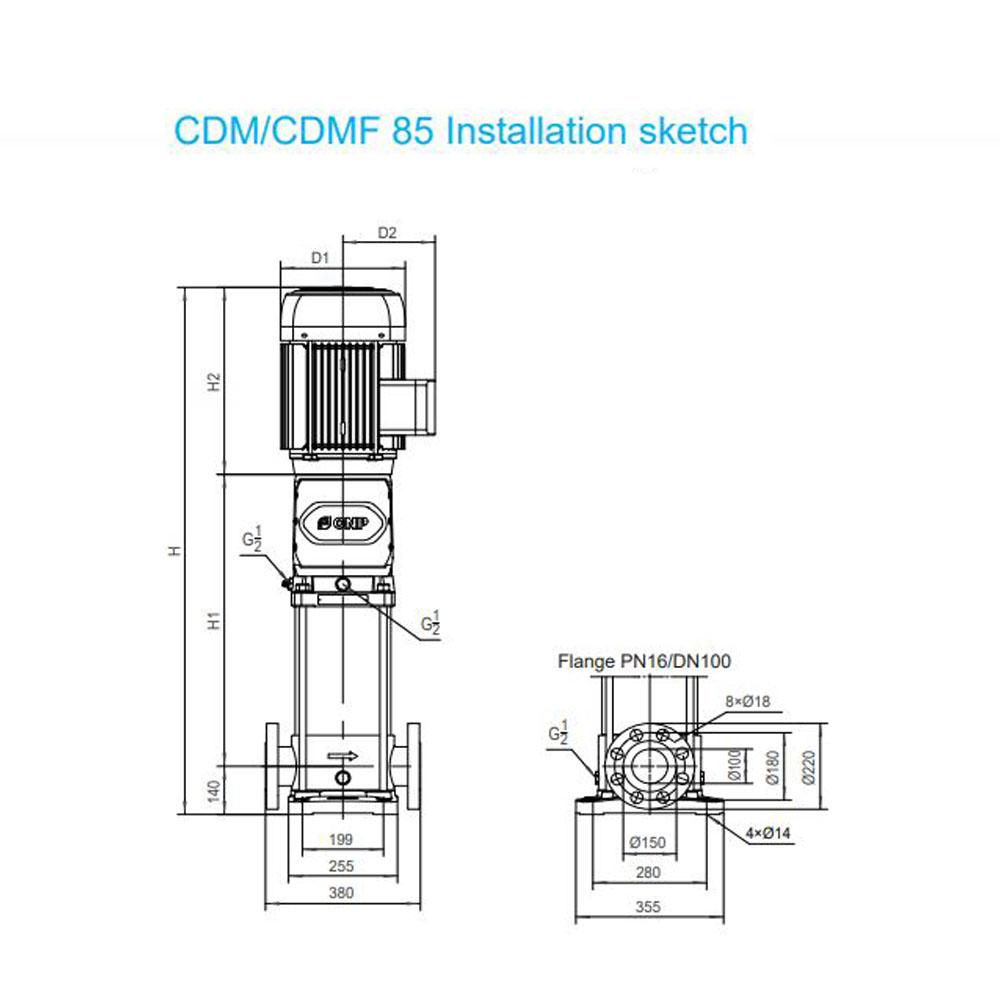

| Загвар | D1 | D2 | CDM | CDMF | H | H1 | H2 |
|---|---|---|---|---|---|---|---|
| CDM 85-1-1 | 260 | 208 | 110 | 101 | 983 | 453 | 390 |
| CDM 85-1 | 260 | 208 | 118 | 109 | 983 | 453 | 390 |
| CDM 85-2-2 | 330 | 255 | 190 | 181 | 1215 | 575 | 500 |
| CDM 85-2 | 330 | 255 | 205 | 196 | 1215 | 575 | 500 |
| CDM 85-3-2 | 330 | 255 | 217 | 208 | 1357 | 667 | 550 |
| CDM 85-3 | 360 | 285 | 270 | 261 | 1382 | 667 | 575 |
| CDM 85-4-2 | 400 | 310 | 335 | 326 | 1549 | 759 | 650 |
| CDM 85-4 | 400 | 310 | 335 | 326 | 1549 | 759 | 650 |
| CDM 85-5-2 | 400 | 310 | 359 | 350 | 1641 | 851 | 650 |
| CDM 85-5 | 400 | 310 | 359 | 350 | 1641 | 851 | 650 |
| CDM 85-6-2 | 460 | 340 | 463 | 454 | 1768 | 943 | 685 |
| CDM 85-6 | 460 | 340 | 463 | 454 | 1768 | 943 | 685 |
